1. Why Bother with Earthing Standards?

Ever wondered why your electrician keeps muttering about "earthing" and waving around a bunch of wires? It's not some arcane ritual, I promise! Earthing, or grounding as some call it, is a crucial safety measure in electrical systems. It's all about providing a safe path for fault currents to flow, protecting you, your family, and your expensive electronics from potentially dangerous electrical shocks. Think of it as the electrical system's emergency escape route.

Without a proper earthing system, a fault current could linger in metal enclosures, making them live and posing a serious electrocution hazard. Imagine touching your washing machine and getting a nasty jolt! That's precisely what earthing aims to prevent. Standards, like the IEC standard for earthing, are what keeps this life-saving system doing its job effectively. They ensure everyone is on the same page regarding how it's designed and implemented. So it's not just about following some rules, it's about a safer electric future.

But who makes up these standards? Well, that's where organizations like the International Electrotechnical Commission (IEC) come in. They bring together experts from around the world to develop these guidelines, based on the best available science and engineering practices. It's a collaborative effort, aimed at minimizing risks and maximizing safety in electrical installations. So, next time you see the IEC logo, you'll know it represents a commitment to safe and reliable electricity worldwide.

And why is having an IEC standard so important, rather than just winging it with whatever you think works? Consistency, for one! When everyone adheres to the same standard, it means equipment from different manufacturers will work together safely. It also makes it easier for electricians and other professionals to understand and maintain electrical systems, regardless of where they were installed. Think of it like a common language for electrical safety — everyone speaks the same terms.

Earthing / Grounding Untuk Aplikasi LV Sesuai IEC

Diving into the IEC Standard for Earthing

2. What's Actually In This Standard?

Okay, so we know earthing is important, and the IEC has a standard for it. But what does that standard actually contain? That's a fair question! The IEC standard for earthing, which is typically found under series IEC 60364 (particularly part 5-54), covers pretty much everything you need to know about designing and implementing an effective earthing system. It's not just one document; rather, it's a family of standards that address different aspects of electrical installations, including earthing and bonding.

It outlines the types of earthing systems that are permissible (more on those later!), the size and material of earthing conductors, the methods for connecting to earth, and the testing and inspection requirements. It specifies acceptable earth electrode materials, like copper or steel, and provides guidance on selecting the right size of earthing conductor based on the fault current it's expected to carry. There's a lot of physics and mathematical modeling that goes into figuring this out to make sure it works when you need it!

Think of it like a recipe book for safe earthing. It guides how to make sure the earthing system is up to par. It isn't just theory; these standards include practical guidance and examples to help engineers and electricians implement the earthing system correctly. This is important, because it isn't always clear what you need to do to make it work. The standard is there as guidance to make it easier and safe.

Furthermore, the IEC standard also focuses on bonding, which is essentially connecting different metal parts together to ensure they're all at the same electrical potential. This is crucial for preventing dangerous voltage differences that could cause shocks. Bonding conductors are used to link things like metal pipes, structural steel, and even the metal casings of appliances. By ensuring everything is connected, the standard helps create a safe and equal playing field for electricity.

Earth Cable Size Calculation Software Electrotechnik

Types of Earthing Systems Explained

3. TT, TN, and IT

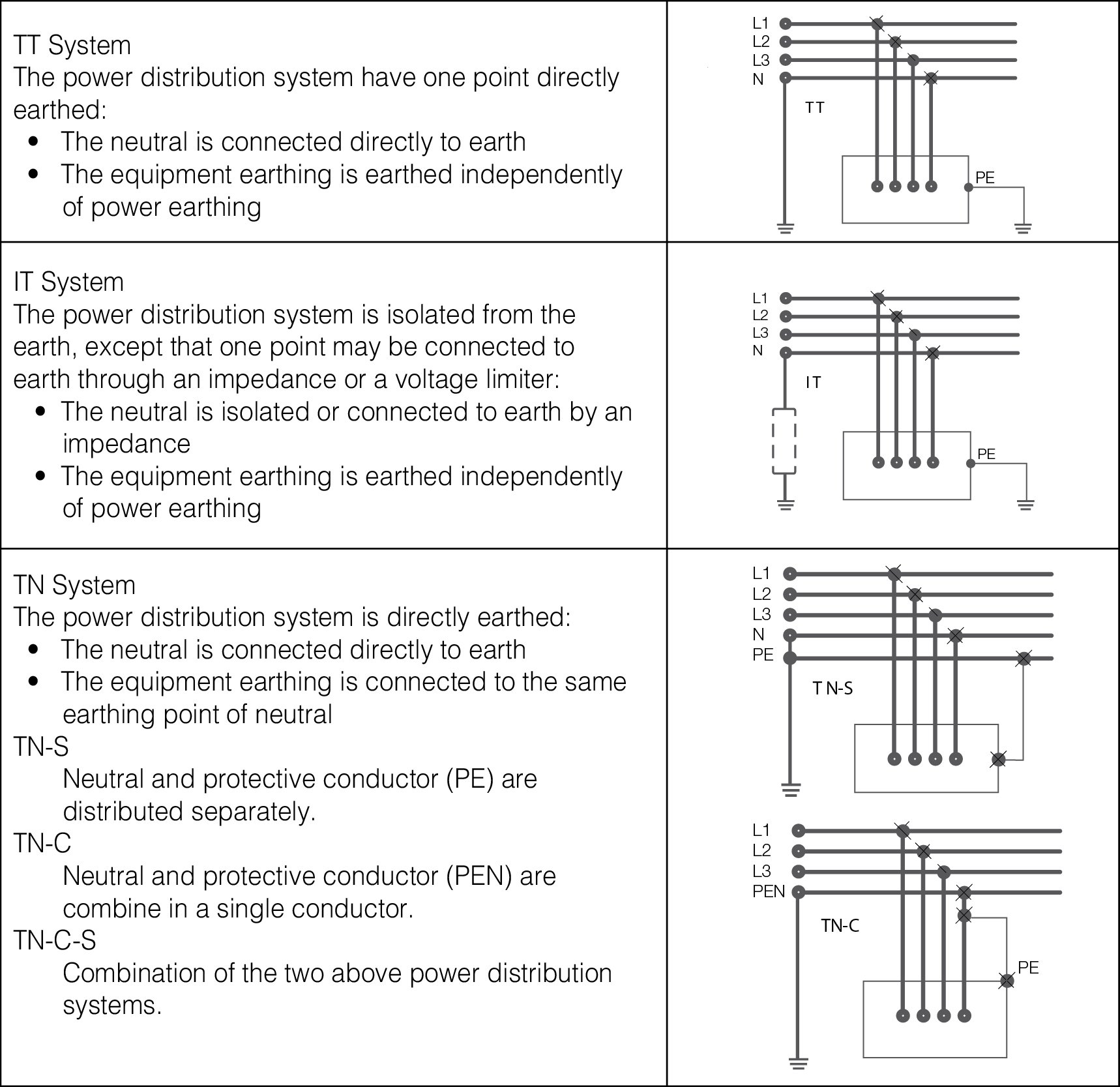

Earthing systems aren't one-size-fits-all. The IEC standard recognizes different types of systems, each with its own characteristics and applications. The most common ones you'll encounter are TT, TN, and IT systems. Don't let the abbreviations intimidate you; they're just labels that describe how the power supply neutral point is connected to earth and how the equipment enclosures are earthed.

In a TT system, the power supply neutral is earthed directly, and the equipment enclosures are earthed independently, typically using a local earth electrode. This system is common in areas where it's difficult to achieve a low-resistance earth connection at the power supply point. It offers good protection against earth faults but may require the use of residual current devices (RCDs) to provide adequate safety.

TN systems, on the other hand, have the power supply neutral earthed directly, and the equipment enclosures are connected to this same earth through a protective conductor (PE). There are variations of TN systems, such as TN-S (separate neutral and protective conductors) and TN-C (combined neutral and protective conductor, also known as PEN). TN systems generally provide better fault protection than TT systems, as the fault current can flow back to the supply neutral more easily, tripping protective devices quickly.

Finally, IT systems have the power supply neutral either isolated from earth or connected to earth through a high impedance. In this system, a single fault to earth will not cause a high fault current, allowing the equipment to continue operating. However, a second fault to earth will create a short circuit, requiring protective devices to trip. IT systems are often used in critical applications where continuity of supply is essential, such as hospitals and industrial plants. It is important to note that IT systems require special monitoring and protection measures to ensure safety.

Earthing System Technical Insights By Fuji Electric

Why This All Matters to You (Even If You're Not an Electrician)

4. Safety and Compliance

So, why should the average person care about the IEC standard for earthing? Well, for starters, it's all about safety. As we've established, a properly earthed electrical system can protect you and your loved ones from potentially lethal electric shocks. It's not something you want to take lightly.

Beyond safety, there's also the issue of compliance. Many countries and regions have regulations that require electrical installations to comply with the IEC standard or its local equivalent. This means that if you're building a new home or renovating an existing one, you'll need to ensure that your electrical system meets these requirements. Failure to do so could result in fines, delays, or even the risk of your property being deemed unsafe.

Also, insurance companies may require compliance with electrical safety standards, including earthing requirements, as a condition of coverage. If your electrical system isn't up to code, you could find yourself in a tricky situation if something goes wrong. Think of it like having a car that doesn't meet safety standards — you might be able to drive it, but you're taking a risk, and your insurance company might not be too happy about it.

Moreover, compliance with the IEC standard can also improve the overall reliability and performance of your electrical system. A well-designed and properly earthed system is less likely to experience faults, which can reduce downtime and save you money in the long run. This is especially important for businesses that rely on electricity to operate their equipment and processes. So, while it might seem like a complex and technical topic, the IEC standard for earthing ultimately has a direct impact on your safety, your property, and your wallet.

(PDF) EARTHING RESISTANCE VALUES OF EARTHTERMINATION SYSTEMS ACCORDING

IEC Standard for Earthing

5. Innovation and Adaptation

The world of electrical engineering is constantly evolving, and so too is the IEC standard for earthing. As new technologies emerge and our understanding of electrical phenomena improves, the standard is regularly updated to reflect the latest advancements.

One area of particular focus is the integration of renewable energy sources, such as solar panels and wind turbines, into the electrical grid. These sources often have different earthing requirements than traditional power sources, and the IEC standard is being adapted to address these challenges. For example, the standard provides guidance on earthing for photovoltaic (PV) systems, ensuring that they are safely integrated into residential and commercial buildings.

Another area of innovation is the development of new earthing techniques and materials. Researchers are constantly exploring ways to improve the effectiveness and reliability of earthing systems, such as using conductive concrete or advanced grounding electrodes. These advancements could lead to more robust and cost-effective earthing solutions in the future. The IEC standard plays a crucial role in evaluating and incorporating these new technologies, ensuring that they meet the required safety and performance criteria.

Furthermore, the IEC standard is also being adapted to address the growing problem of electromagnetic interference (EMI). EMI can disrupt electronic equipment and cause malfunctions, and a properly designed earthing system can help mitigate these effects. The standard provides guidance on minimizing EMI through proper earthing and shielding techniques. As our reliance on electronic devices continues to increase, the importance of EMI mitigation will only grow, making the IEC standard for earthing even more relevant in the years to come.

Electrical Earthing Methods And Types Of & Grounding

Frequently Asked Questions About Earthing

6. Your Burning Questions, Answered!

Let's face it, earthing can be a confusing topic. So, here are some frequently asked questions to clear up any lingering doubts:

Q: What happens if my house isn't properly earthed?
A: If your house isn't properly earthed, you're at a higher risk of electric shock if a fault occurs. Appliances can become live, and touching them could be dangerous. It's a bit like playing Russian roulette with electricity!

Q: How can I tell if my house is properly earthed?
A: Don't try to test it yourself! Call a qualified electrician to inspect your electrical system. They have the proper tools and knowledge to assess the earthing and identify any potential problems. Think of it like going to a doctor for a checkup — it's best left to the professionals.

Q: Is earthing the same as grounding?
A: Yes, earthing and grounding are essentially the same thing. The terms are often used interchangeably. So, if someone starts talking about "grounding," don't get confused; they're just using a different word for the same concept.

Q: Does earthing protect against lightning strikes?
A: While earthing can help to some extent, a dedicated lightning protection system is needed to provide comprehensive protection against lightning strikes. Earthing provides a path for fault currents, lightning protection systems intercepts and safely transmits the lightning energy to the ground.
